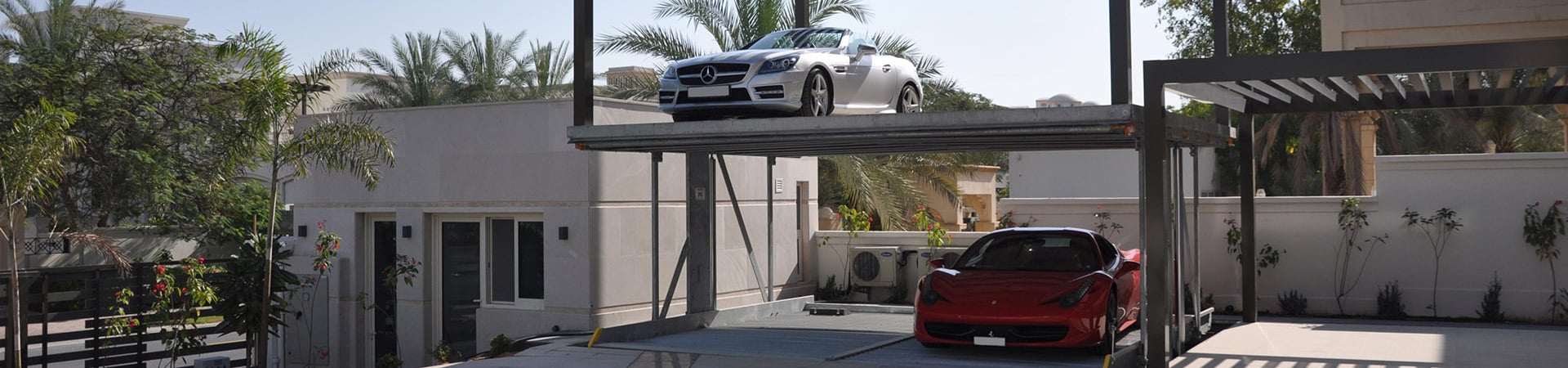

WÖHR Parklift 461 | Outdoor Pit Parking Lift

A Flexible Below-Grade Parking Solution for Driveways, Courtyards, and Outdoor Residential Applications

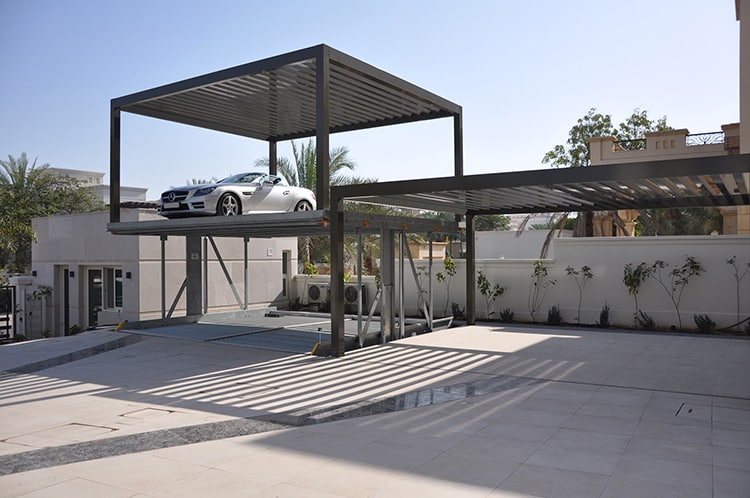

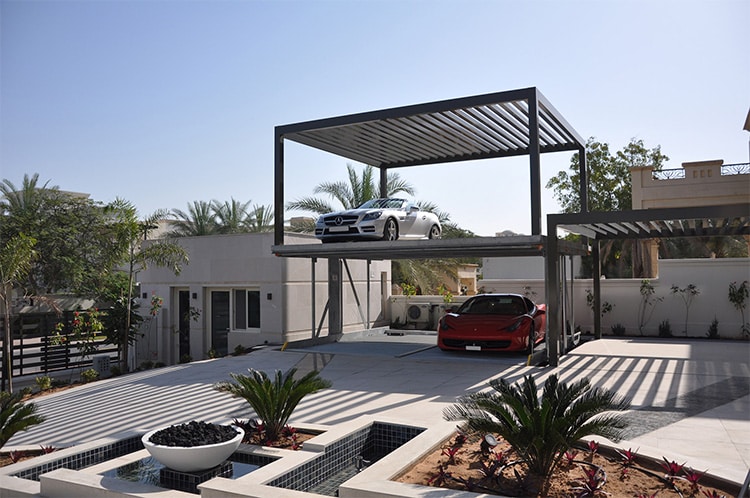

Harding Autopark Systems’ Parklift 461 and 462 are pit-mounted, dependent-platform parking lifts designed to double parking capacity in outdoor and semi-outdoor settings—driveways, courtyards, and residential retrofits—without requiring a fully enclosed garage structure. The lower vehicle parks below grade in an open pit, while the upper platform sits at or near finished floor level, keeping the installation visually unobtrusive.

Manufactured in Germany by WÖHR, both models use free-standing, self-supporting steel frames and are engineered per DIN 1991-1-3 for Snow Load Zone II and wind force 8 impact loads, making them well suited to a wide range of climates and exposure conditions. The Parklift 461 is designed for shallower pit applications, while the Parklift 462 accommodates deeper installations—giving architects and homeowners flexibility based on site conditions and excavation constraints.

Product Variants

Download Spec Sheet

Key Features & Specifications

Single-unit configurations store 1–2 vehicles; double-unit configurations store 2–4, with row arrangements available for larger installations. Under specified conditions, the top platform can itself be finished and used as a drivable parking surface—supporting stone, gravel, or lawn-grid infill—effectively blending the lift into the surrounding landscape. Vehicle access is via a two-stage hydraulic lift system, with wall-mounted or stand-mounted operating controls and full EMERGENCY STOP and key-interlock safety features.

Designed for single-family homes, townhome developments, and small multifamily retrofits, the Parklift 461/462 offers a practical way to add usable parking to properties where excavation for a full underground garage isn’t feasible.

Features

Zinc-plated, corrosion-resistant steel construction
Free-standing, self-supporting frame — no reliance on surrounding structure
Top platform can be finished as a drivable surface (stone, gravel, or lawn-grid)
Engineered for outdoor exposure per DIN 1991-1-3 (Snow Load Zone II, wind force 8)
Hydraulic two-stage lift, dual 5.5 kW three-phase motors (2 x 5.5 kW power pack)
Key-interlocked operating unit with EMERGENCY STOP
Maintenance shaft with vertical access ladder (per EN 14396:2004)
Available in single, double, or row (combined) arrangements

Capabilities

Standard Platform Load Capacity: 4,409 lbs. (2,000 kg), 1,102 lbs./wheel
Upgraded Platform Load Capacity: 5,732 lbs. (2,600 kg), 1,433 lbs./wheel
Frame Bearing Point P1, Single Unit: up to +27,209 lbs. (121 kN)
Frame Bearing Point P1, Double Unit (top platform w/ stone coating): up to +46,766 lbs. (208 kN)
Snow Load Rating: up to 15.7 psf (0.75 kN/m²)
Wind Impact Rating: 5.2 psf (0.25 kN/m², wind force 8)

Dimensions

Parklift 461 (Shallow Pit):

Overall Height: 6’11” up to 8’0″
Pit Depth: 8’2″ up to 9’4″
Minimum Crane Hook Height: 13’1″ (crane load approx. 1,543 lbs.)

Parklift 462 (Deep Pit):

Overall Height: 12’8″ up to 14’11”
Pit Depth: 13’11” up to 16’3″
Minimum Crane Hook Height: 22’11” (crane load approx. 3,086 lbs.)

Both Models:

Maximum Vehicle Height, Lower Level: 5’5″ up to 6’7″
Platform Width, Single Unit: 9’0″ (standard) up to 10’4″ (recommended for wider vehicles)
Clear Platform Width, Single Unit: 7’7″ up to 8’10”
Platform Width, Double Unit: 16’7″ up to 19’2″
Clear Platform Width, Double Unit: 15’1″ up to 17’9″
Maximum Vehicle Width (w/o mirrors): 6’3″
Pit Length: 17’5″
Ramp Grade: max. 3% descent / max. 10% ascent at entrance

Power Requirements

3-Phase + Neutral + Ground, 230/400V, 50Hz (per site electrical code)
Dual 5.5 kW Hydraulic Power Pack Motors
Circuit Protection: 3 x 35A slow-blow fuse per power pack (starting current 57A)
Separate 230V supply required for lighting/power point in maintenance shaft

Note: Electrical specifications reflect the manufacturer’s data sheet (European standard); final circuit design should be confirmed with a licensed electrician per local code.

Warranty

Contact Harding Autopark Systems for warranty terms.

Safety

Up/down operating unit with EMERGENCY STOP and key-blocking (lowermost position only)
ISO 3864-compliant safety markings along pit edges
Safety mesh in side/rear areas as required
Ventilation system required (specialist-designed) for humidity and corrosion control
TÜV SÜD-assessed conformity
Compliant with EC Machinery Directive 2006/42/EC and DIN EN 14010
