WÖHR Parklift 413 Independent Three-Level Parking, No Need to Move Other Vehicles

WÖHR PARKLIFT 413 Three-Level Underground Parking Lift

A high-density pit-mounted solution for underground and below-grade parking and independent access.

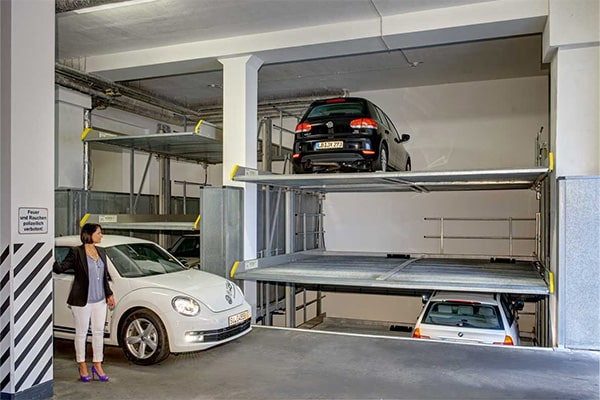

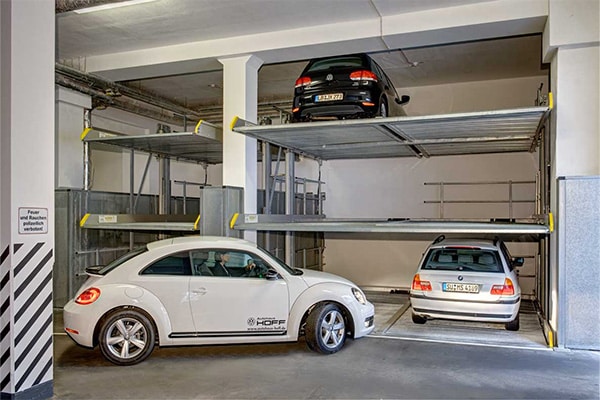

Harding Autopark Systems’ Parklift 413 is engineered for underground and semi-underground garages, where maximizing vertical space is essential. The system stacks vehicles three levels deep within a single pit—tripling usable parking capacity within the same footprint as one surface-level space.

Manufactured in Germany by WÖHR, the Parklift 413 is built to the same rigorous engineering, safety, and durability standards found across the Parklift line. Platforms move into a level, horizontal position for easy drive-on and drive-off access, and the system’s corrosion-resistant, zinc-plated components are suited to the humidity and drainage demands of below-grade installations.

Product Variants

Spec Sheet Download

Key Features & Specs

Available in both Standard and Compact height configurations, the 413 can be tailored to available headroom, ceiling clearance, and vehicle mix—accommodating everything from compact sedans to full-size SUVs and station wagons. Single units store 3 vehicles; double units store 6, with the option to combine unit widths within the same installation. The system also supports intermediate walls, garage doors, and driving-aisle configurations to fit a wide range of underground layouts.

Designed for developers, architects, structural engineers, and parking operators, the Parklift 413 offers a proven way to add significant parking density below grade without expanding a building’s footprint.

Features

  • Zinc-plated, corrosion-resistant steel construction

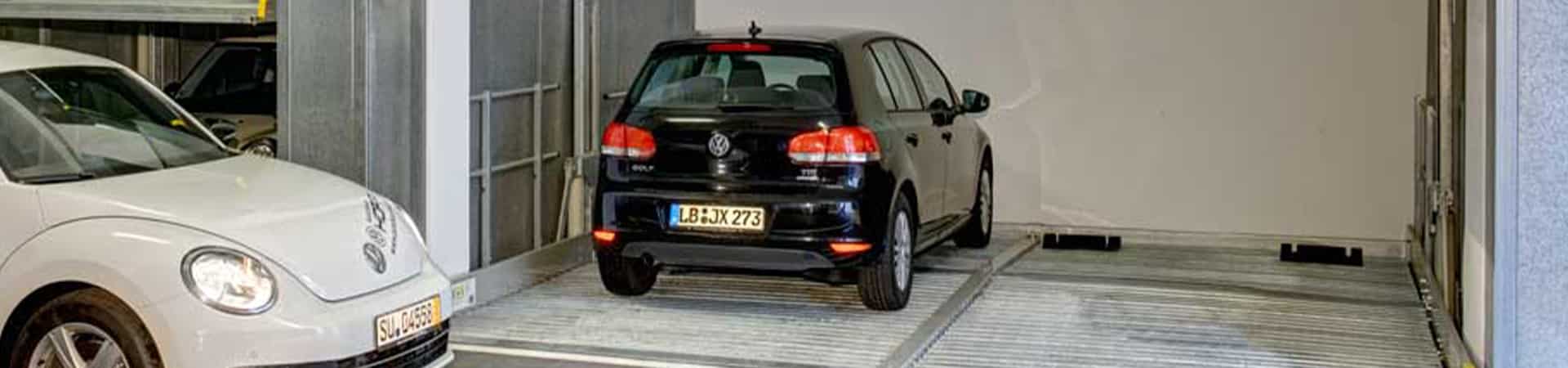

  • Platforms level to horizontal for drive-on/drive-off access
  • Hydraulic two-stage lift system, 5.5 kW three-phase motor
  • Central hydraulic power pack option (serves 2–5 single units or 2–3 double units)
  • Engineered pit drainage channels for snow melt and runoff
  • Configurable for intermediate walls, garage doors, and combined-width units
  • Standard and Compact height options to match available headroom

Capabilities

  • Platform Load Capacity: 4,409 lbs. (2,000 kg)
  • Load Per Wheel: 1,102 lbs. (500 kg)
  • Frame Bearing Point P1, Single Unit: +13,489 lbs. (60 kN)
  • Frame Bearing Point P1, Double Unit: +22,481 lbs. (100 kN)

Dimensions

  • Overall Height, Standard Type: 17’9″ up to 18’2″
  • Overall Height, Compact Type: 15’9″ up to 16’3″
  • Pit Depth, Standard Type: 12’4″ up to 12’8″
  • Pit Depth, Compact Type: 11’0″ up to 11’4″
  • Platform Width, Single Unit: 8’2″ (standard), up to 8’10” (recommended for comfort/wider vehicles)
  • Platform Width, Double Unit: 16’5″ up to 17’9″
  • Maximum Vehicle Length: 16’5″ (extendable to 17’1″ with pit lengthened to 18′)
  • Maximum Vehicle Width (w/o mirrors): 6’3″
  • Maximum Vehicle Height, Standard Type: up to 5’9″
  • Maximum Vehicle Height, Compact Type: up to 5’1″
  • Minimum Overhead Clearance: 9’10” horizontal (max. 3% descent / 10% ascent ramp permitted)

Power Requirements

  • 3-Phase + Neutral + Ground, 230/400V, 50Hz (per site electrical code)
  • 5.5 kW Hydraulic Power Pack Motor
  • Circuit Protection: 3 x 25A slow-blow fuse per power pack (starting current 57A)

Note: Electrical specifications reflect the manufacturer’s data sheet (European standard); final circuit design should be confirmed with a licensed electrician per local code.

Warranty

Safety

  • Up/down operating unit with EMERGENCY STOP
  • ISO 3864-compliant safety markings along pit edges
  • Safety railings per EN ISO 13857 where unit-to-wall gap exceeds 8″
  • TÜV SÜD-assessed conformity
  • Compliant with EC Machinery Directive 2006/42/EC, DIN EN 14010, and ISO 9001:2015
