Combilift 543 & 543MR — Three-Level Puzzle Parking

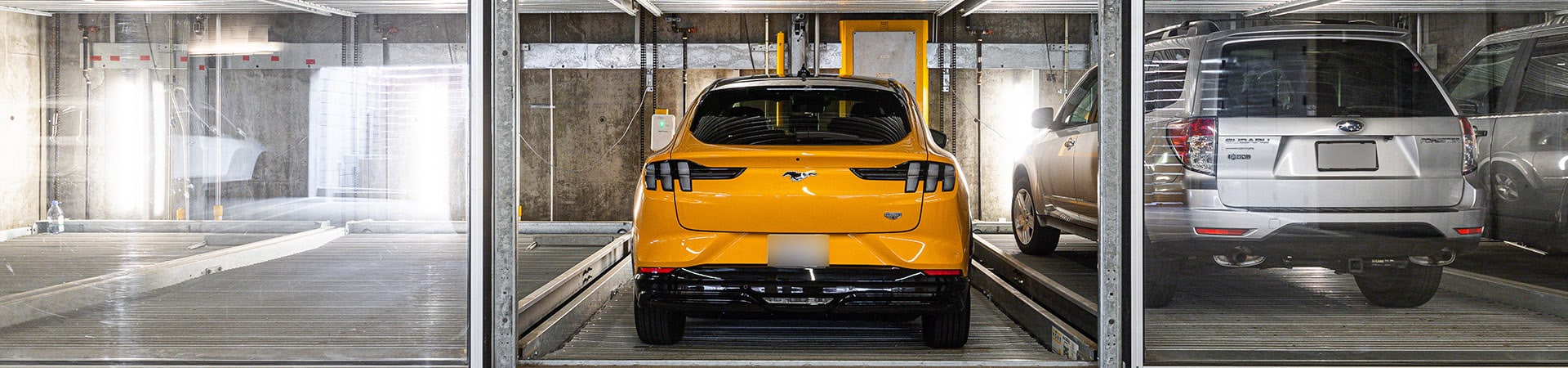

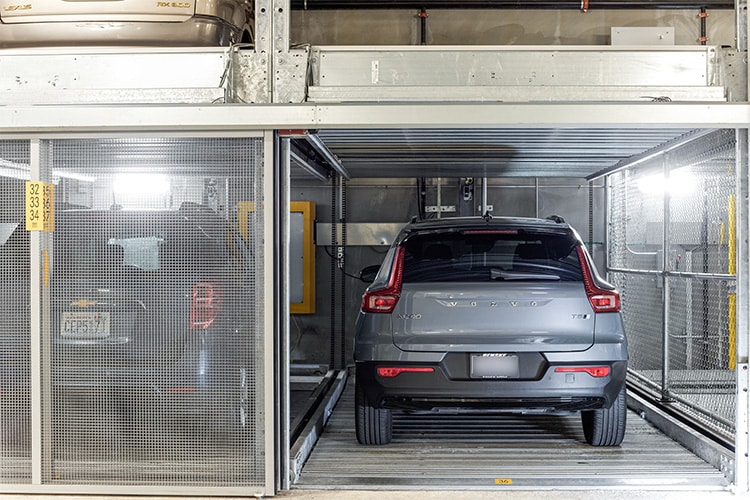

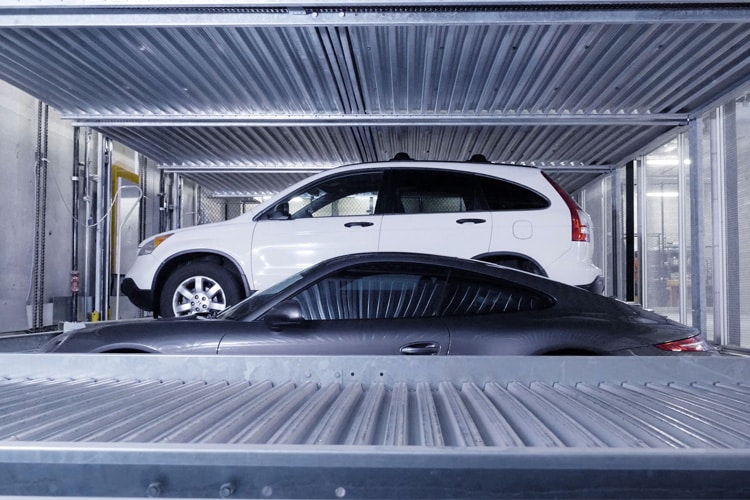

The WÖHR Combilift 543 is the highest-density system in the Combilift family. Each grid carries three levels — an upper level, an entrance level, and a lower level in the pit — with independent access to every space. One space in the entrance row stays empty; entrance-level platforms shift sideways into it, and upper or lower platforms then raise or lower into position for the driver.
The 543MR is the drive-through variant. Where the 543 is used as a single-row system or as the last row of a multi-row installation, the 543MR occupies the front rows and allows vehicles to pass through the vacant space into the row behind. It combines with the Combilift 543, 542, and 552 in rear positions, supporting arrangements two, three, and four rows deep.
Manufactured in Germany by WÖHR, the 543 is engineered for reliability and long-term performance in residential buildings, office buildings, business premises, and hotels.
Harding Autopark Systems specifies the 543 and 543MR where a project needs maximum stall count from a constrained footprint. A single row of 543 supports up to 10 grids and 29 parking places; multi-row 543MR arrangements deliver comparable density across a deeper bay while requiring only one drive aisle. Because the MR pit is 6″ deeper than a standard pit, the same vehicle heights can be accommodated on the lower level in every row.
Key Features & Specs
Key Benefits of the Combilift 543 & 543MR
- Three parking levels per grid — the highest density in the Combilift family
- Independent access to every space, with no valet required
- 543MR drive-through configuration supports arrangements up to four rows deep
- Combines with the Combilift 542 and 552 in rear rows to suit varying floor-to-floor conditions
- Platform load capacity can be increased later, including on individual parking places
- Straight or stepped pit — stepped pits carry no additional Combilift cost
- Modular configuration adaptable to nearly any building layout
Performance & Specifications
Standard Configuration
- 220V, three-phase electrical service; 3.0 kW hydraulic power pack with three-phase motor and ready-wired switching cabinet
- Fuse protection scaled to the arrangement: 3 × 16A for a single row, 3 × 32A for two rows, 3 × 40A for three rows, 3 × 63A for four rows
- Up to 4,400 lbs per platform (1,100 lbs maximum load per wheel)
- Three levels: upper, entrance, and lower
- Pit depth 5’9″ to 8’0-1/2″ (Combilift 543); 6’3″ to 8’6-1/2″ (Combilift 543MR)
- Vehicle heights from 4’11” to 7’2-1/2″ per level
- Overall system heights from 11’3-3/4″ to 15’3″
- Pit length 18’1″ for vehicles up to 16’5″
- Clear platform widths from 8’2-1/2″ to 9’10” (543) and 8’2-1/2″ to 8’10-1/4″ (543MR)
- Up to 10 grids and 29 parking places in a single row
- Galvanized steel construction, modular for efficient fabrication and installation
Enhanced Configuration (Project-Specific)
- Up to 5,732 lbs per platform (1,433 lbs maximum load per wheel); higher platform capacities available on request
- Pit length of 18’8-1/2″ recommended to accommodate vehicles up to 17’1″ and future mid-range models
- Clear platform width of 8’10-1/4″ or greater recommended for comfortable entry and exit
- Multi-row drive-through arrangements: up to 6 grids and 34 places in two rows, 4 grids and 33 places in three rows, 3 grids and 32 places in four rows
- Sound insulation package for noise-sensitive residential applications
- Customizable layouts based on project needs
Installation Requirements
- Pit required. A straight pit is recommended — it simplifies concrete work and dimensional compliance — though a stepped pit is available at no additional Combilift cost
- Bottom slab minimum 7″ thick; front drive-in wall and rear wall to be concrete, minimum 7″ thick, perfectly flat and free of protruding elements
- Concrete quality of at least C20/25 required for dowel fastening
- System frames fixed to the slab with base plates of approximately 54 in² and to walls with plates of approximately 4.65 in², using adhesive anchor bolts at 4-3/4″–5-1/2″ hole depth
- Structural bay (space required) of 9’2-1/4″ to 10’10” depending on the clear platform width selected
- Channels, undercuts, and concrete haunches are not permitted along the pit floor-to-wall joints; where they are unavoidable, system width must be reduced or pit width increased

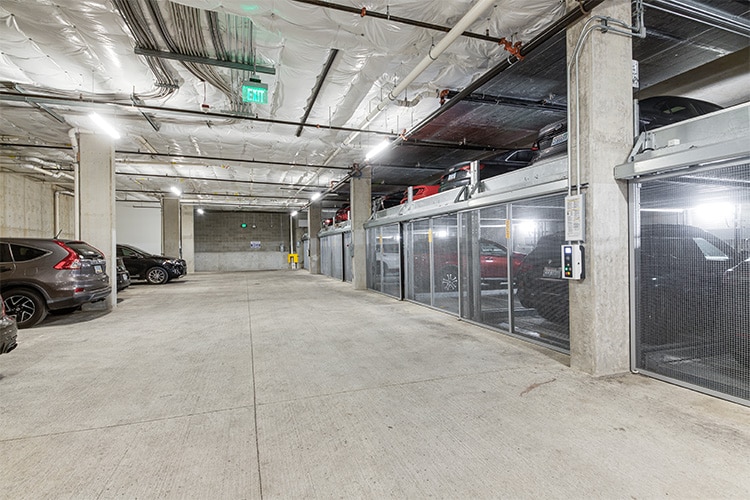

- Automatic sliding doors required. Doors are electro-mechanically interlocked and can only open once the selected parking place has reached the entry/exit position
- Clear passage height of at least 6’6-3/4″ recommended where two or more systems are placed in a row
- Drainage channel along the pit center connecting to a floor drain or a 20″ × 20″ × 8″ drainage pit; oil-resistant pit floor coating recommended
- Operating range +41°F to +104°F
- Lighting, fire protection equipment, and railings provided by others per local requirements
- Designed for integration into new construction or retrofit applications
Warranty
- All Combilift 543 and 543MR systems include a 1-year parts and labor warranty.
Frequently Asked Questions
How long does retrieval take, and what about the morning rush?
A typical retrieval depends on the position of the vehicle. Cars at ground level only need the gate to open for access. Only one platform position is empty per level, so the system shifts cars sideways to open a path. For busy buildings we plan the layout and number of units around your peak demand.
Can it handle EVs, and is charging available?

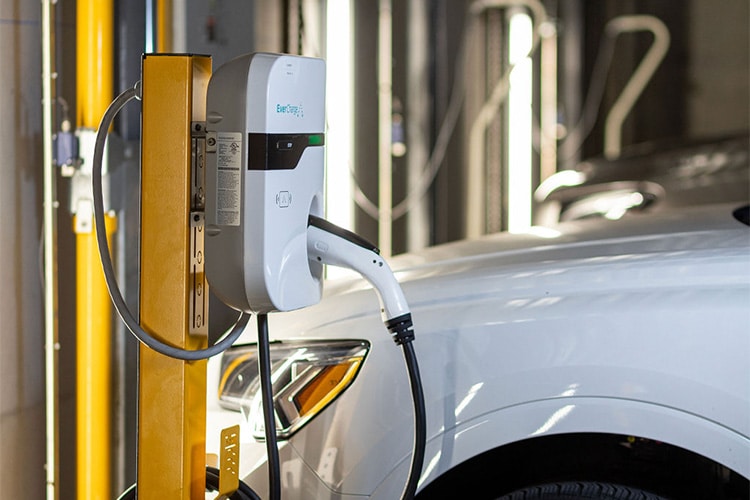

Yes. Combilifts fit the EVs that fit a standard stall, and EV charging on the platforms is available.
